Wood Based Products Testing

Impact Testing

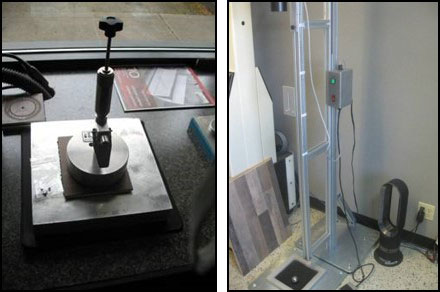

Small Ball Tester
The Small Ball Impact Tester is used to measure the resistance of impact on laminated surfaces by the minimum impact force needed to cause visible damage to the surface under test.

The testing examines the surface testing for damages present of fine hairline cracks , continuous cracks, and flaking of the surface layer.

Large Ball Tester
The Large Ball Impact Tester is used to measure the resistance of impact on surfaces using a large diameter ball. This is defined as the maximum height for which no visible surface cracking, or imprint greater than the specified diameter, occurs in five successive strikes.

The testing examines the surface of the specimen for damage at point of impact. If cracking is not evident, or the carbon imprint is not greater than 0.40” diameter, lower the electromagnetic 2” until cracking is evident. The test should be as close to the center of the specimen as possible.

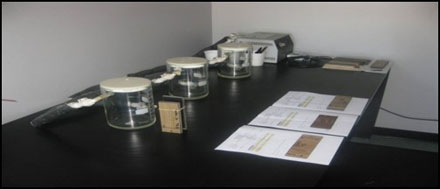

Swelling and Thickness Testing

Thickness-Measures the boards of the extreme edges at the six points indicated below. Place the specimens in 2” (50mm) water bath. Remove the test specimen after 24h ±26min and dry with a towel dry. Determines the final thickness of extreme edge at the same measuring points.

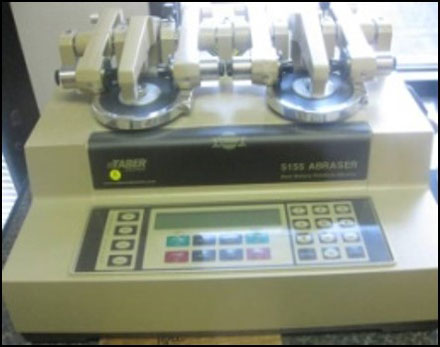

Abrasion Testing

Resistance to Surface Wear
This test measures the ability of the decorative surface of the laminate under test to resist abrasive wear through the sub-level. Abrasion is achieved by rotating a specimen in contact with a pair of loaded cylindrical wheels covered with abrasive paper. The wheels are positioned so that their cylindrical faces are equidistant from the specimen’s axis of rotation but not tangential to it . As they turned by the rotating specimen they abrade an annular track of the specimens surface. The number of revolutions of the specimen required to cause defined degrees of abrasion are used measures of resistances to surface wear.

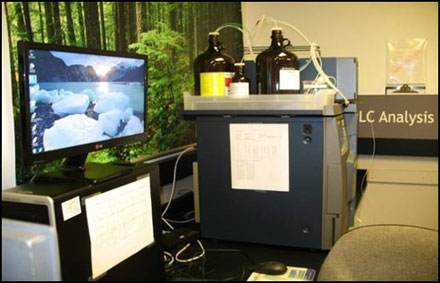

HPLC Analysis

HPLC Analysis is used to separate, identify and quantify each component in a mixture. It relies on pumps to pass a pressurized liquid solvent containing the sample mixture through a column filled with a solid adsorbent material. Each component in the sample interacts slightly differently with the adsorbent material, causing different flow rates for the different components leading to the separation of the components as they flow out the column. The components are then detected using a UV-Vis Spectra Detector.

Pull Testing


Get started today. Contact us for a quote, more information, or answers to your questions. Click here.

Applicable Specifications
  • Abrasion Testing EN 13229 Annex E
  • Opening Between and Height Differences EN13229 Annex B
  • Determination of Squareness EN13229 Annex A 4.5
  • Determination of Resistance Staining EN13229 EN438-2 (Section 26)
  • Determination of Thickness Swelling EN13229 Annex G
  • Gas Sample Extraction 4.1 PCP 30
  • Large/Small Ball impact Test Resistance EN438-2
  • Seam Strength – Sealant
  • Pull Testing Joints

Metallographic Specimen Preparation

Metallographic Specimen Preparation is done to ASTM E3. Our automated preparation proceedures standardize samples and ensure repeatability of tests.

Failure Analysis Investigation

Finding the root cause of a failure is never easy, but without proper testing, it becomes impossible. Metaltest is here to help you discover the reasons for failure and develop methods and processes to prevent future failure.

In-House Machine Shop Services

Our in-house machine shop gives us ultimate control over specimen preparation and testing schedules. It gives you assurance we can turnaround your testing quickly and on schedule.
